Fire & Sliding Door Systems
DoorSon 500 • DoorSon 300C • DP180
View Our Range Below
Curved Sliding Door
Available in 120°, 180°, or 360° configurations, this customisable curved design combines modern aesthetics with a sleek integrated LED canopy. Built with high-quality, durable materials, it features advanced automatic sensors, energy-efficient operation, and enhanced security options including emergency exits and electric locks. Ideal for luxury spaces such as hotels, offices, and upscale venues.
Key Features
Custom Curved Design
Configurable to 120°, 180° or 360° arcs to match your building’s entrance architectureIntegrated Canopy with LED Lighting
Discrete canopy houses built-in LED illumination and sensor, boosting aesthetics and functionalityLow‑Profile Drive Unit
Slim 100 mm-high drive mechanism is compact yet powerful, adjustable for various radii (min. 260 mm, max. >1 m)Adjustable Opening & Closing
Speed can be tuned between 0.3–0.7 m/s; opening time set from 0–15 s Ultra-Low Power Usage
Under 0.5 W in sleep mode, promoting significant energy savings and reduced CO₂ emissionsHigh Safety Standards
Motion/presence sensors work up to 2.5 m, and safety curtains prevent accidents near doors Multiple Access Modes
Open via motion sensor, manual switches (including touchless), smartphone app, access control systemsAdvanced Door Modes
Includes settings like OPEN, LOCK, STOP, AUTO summer/winter, ONE-WAY, selectable via a mode switch (7-mode) or touchless SmartSwitchSmartphone & Cloud Control
Use the “Door Cloud” app for remote control, diagnostics, mode changes, and alertsEmergency & Escape Functionality
Redundant system opens door on failure; meets EN 16005 & EN 16361 for evacuation routes.Robust Construction & Insulation
Thermo profile options, safety glass (10–21 mm), waterproof canopies, and anodised/RAL colour finish
- Custom-shaped entrance
- Built-in entry light
- Compact powerful drive
- Remote control & alerts
- Thermo glass, waterproof
DOORSON 500F
EFS & EF FIRE SLIDE
The Doorson 500 series offers stylish fire protection with sliding functionality and EI30/EI60 fire resistance. In emergencies, it closes to contain fire, while 500 EF/EFS models feature a swing function for safe evacuation. Designed with a sleek 17 cm drive, it includes automatic and side safety sensors and is built for lasting durability.
Key Features
- Fire Resistance: Available in EI30 (30 minutes) and EI60 (60 minutes) ratings, providing reliable fire protection.
- Dual Functionality: Operates as a sliding door under normal conditions and converts to a swing door during emergencies for safe evacuation.
- Automatic Closing: In the event of a fire alarm or power failure, the door automatically closes to contain fire and smoke.
- Safe Evacuation: Equipped with panic bars and flush pull handles, allowing easy exit and entry during emergencies.
- Sleek Design: Features a slim 17 cm drive height, blending seamlessly into modern interiors.
- Advanced Sensors: Includes side safety sensors for touchless operation and enhanced safety.
- Durable Construction: Built with high-quality materials for long-lasting performance.
- Fire Resistance
- Dual Operation
- Energy Efficient Performance
- Advanced Security Features
- Automatic Closing
- Emergency Cases

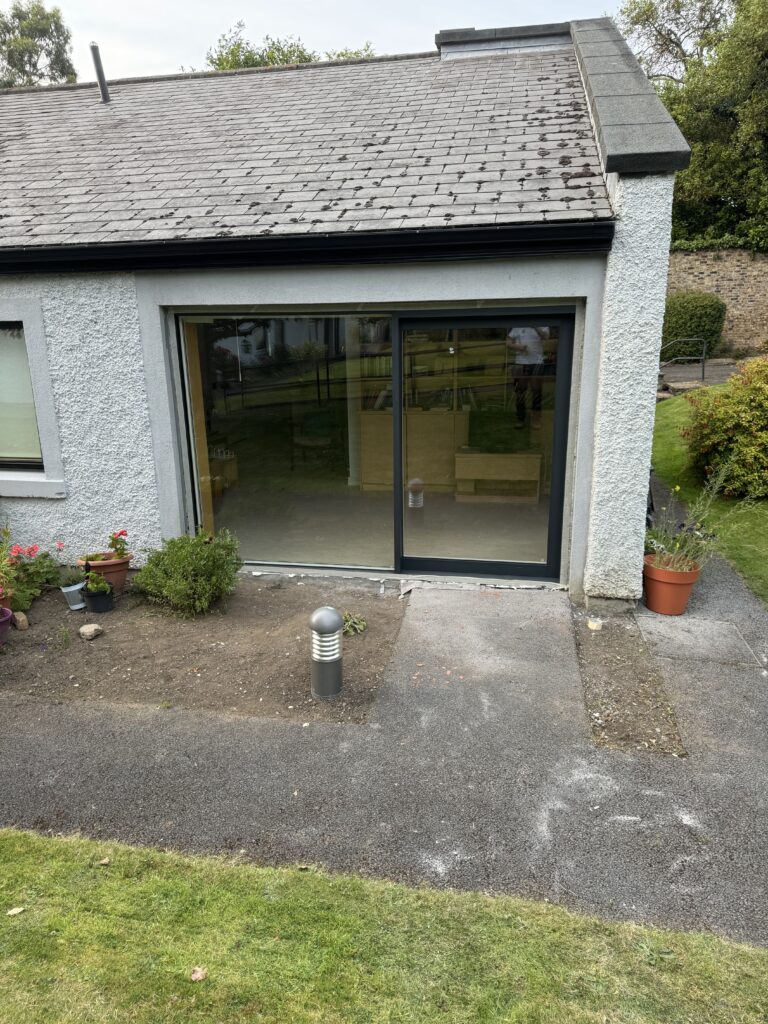

Yawal DP180
LIFT AND SLIDE
Combining energy efficiency with a Uf value of 1.1 W/m²K, this system supports doors up to 430 kg and 3300 mm. It features a modern all-glass design with lowered thresholds, RC2 anti-theft protection, and durable, high-quality materials. Easy to install and low-maintenance, it’s built for long-lasting performance.
